System Overview
Considering the initial research on worldwide CubeSat our system architecture was defined as shown in the next Figure. The subsystem OBDH, ACDC and TT&C are together in the same board using the Inter-Integrated Circuit bus (I2C-bus) as the protocol for basic intermodule communication.

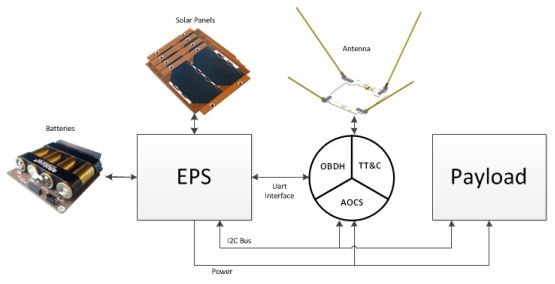

Figure 1- Engineering model boards diagram.
The cubesat will work as the following flowchart:
Figure 2 - FloripaSat work flowchart .
